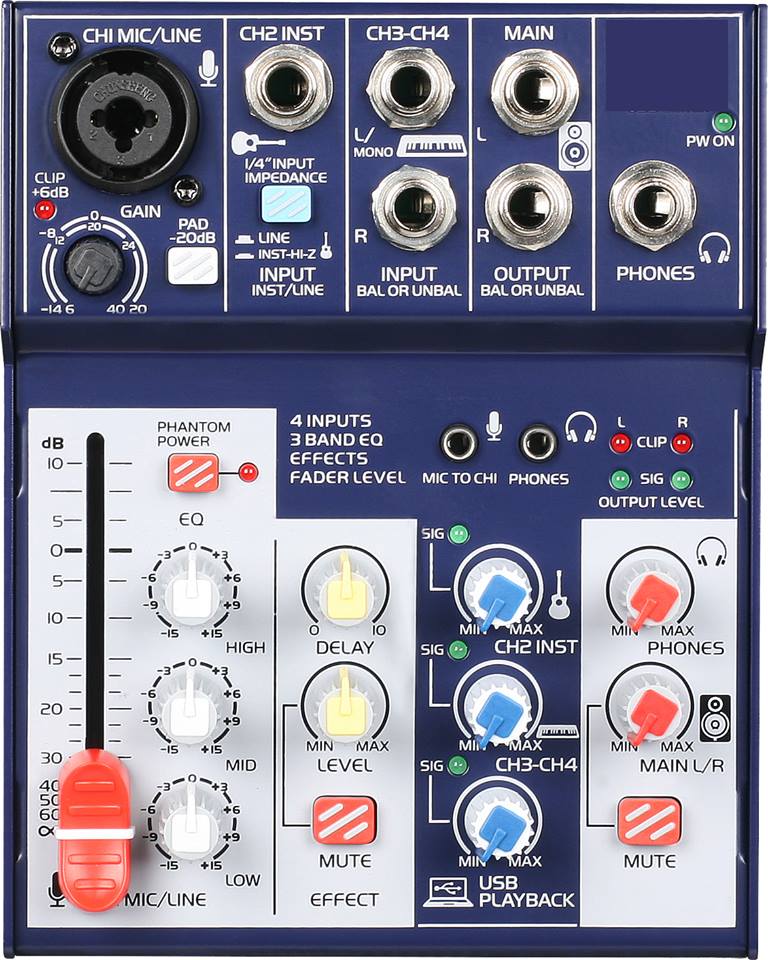

Input Channels Mono (MIC/LINE): 1 including HEADSET MIC (Plug-in Power);
Stereo (LINE): 1;
Mono (GUITAR): 1;
USB PLAYBACK: 1;
Output Channels MAIN L/R OUT: 1;
PHONES: 2 including HEADSET PHONES;
Bus Stereo: 1
Input Channel Function
CH1 MIC/LINE GAIN, -14~+40 dB;
+48V, Phantom Power,LED;
PEAK LED LED turns on when the signal reaches 3 dB below clipping level.
2 BAND EQ, 80Hz,12KHz, ±15dB;
EFFECT, Digital ECHO;
CH2 INST/LINE IMPEDANCE Switch;
SIGNAL LED, -3dB;
LEVEL Knob;
CH3-CH4 LINE SIGNAL LED, -3dB;
LEVEL Knob;
USB Audio Stereo Input / Stereo Output;
USB Audio Class 2.0 compliant;
Sampling Frequency: Max 48 kHz, Bit Depth: 16-bit;
Type B connector;
Playback LEVEL Knob;
Level Meter 2x2 point LED meter (CLIP, SIG);
Power Requirements DC 5 V, 500 mA
Power Consumption Max. 2.5 W
Dimensions (WxHxD) 113 mm x 40 mm x 135 mm (4.4" x 1.6" x 5.3" )
Net Weight 0.6 kg (1.3 lbs)
