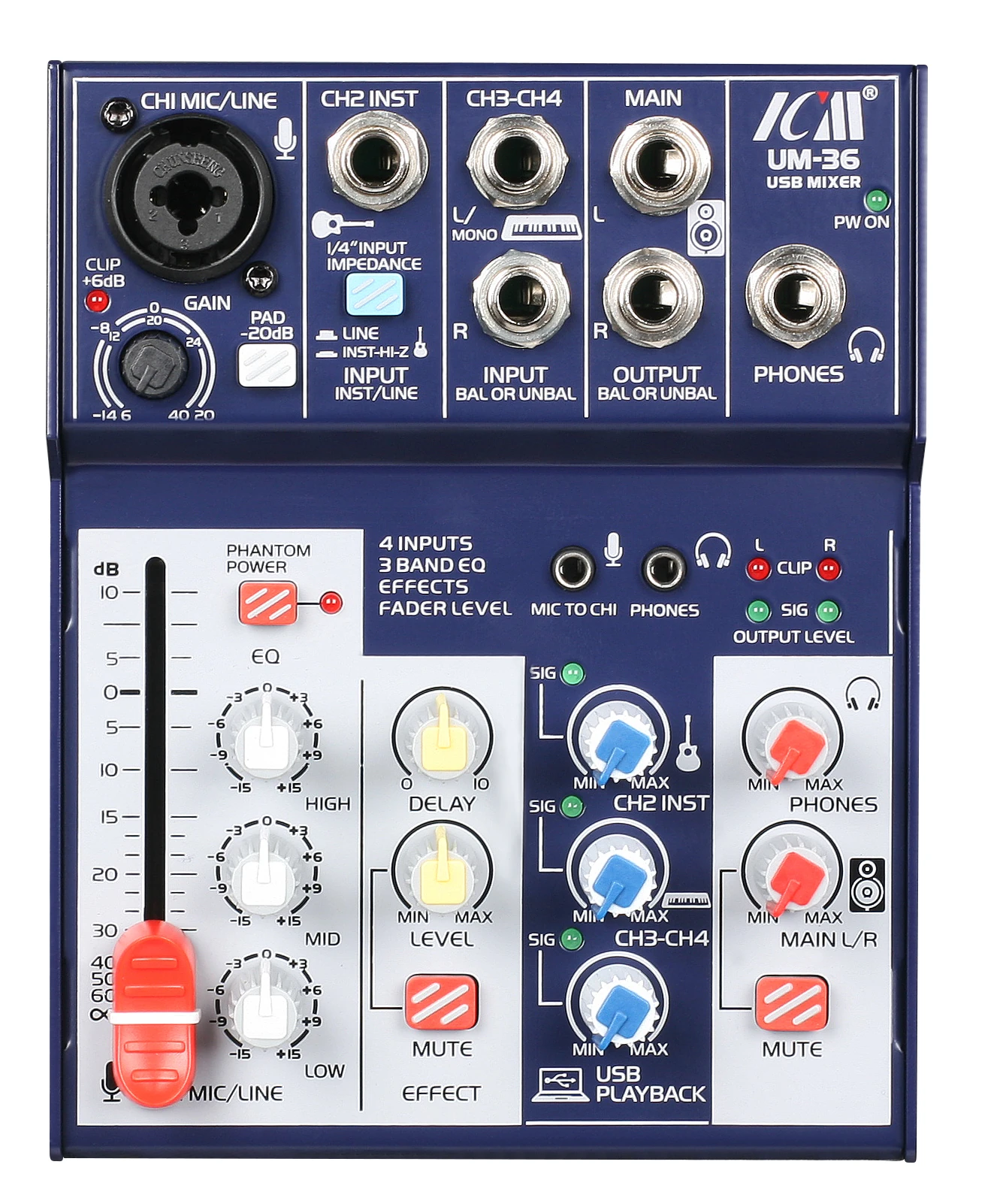

UM-36 4-channel USB powered mixer and interface. Balanced microphone input has phantom power, input gain control, 60mm fader, 3-way EQ and digital echo.
Inputs :
Channel 1
- Combo balanced 3-pin XLR microphone and 6.35mm jack line input
- 3.5mm jack input with plug-in-power for headset microphone
- Input gain control
- -20dB pad
- Fader level control
- LED clip indicator
- Phantom power on/off switch
- 3 way EQ (80Hz, 2.5KHz, 12KHz, +/- 15dB)
- Digital echo effect with delay control, level control and mute switch
Channel 2
- 6.35mm jack line input
- High-impedance switch for guitar
- Level control
- LED signal indicator
Channel 3/4
- 2 x 6.35mm balanced/unbalanced jack line inputs
- Level control
- LED signal indicator

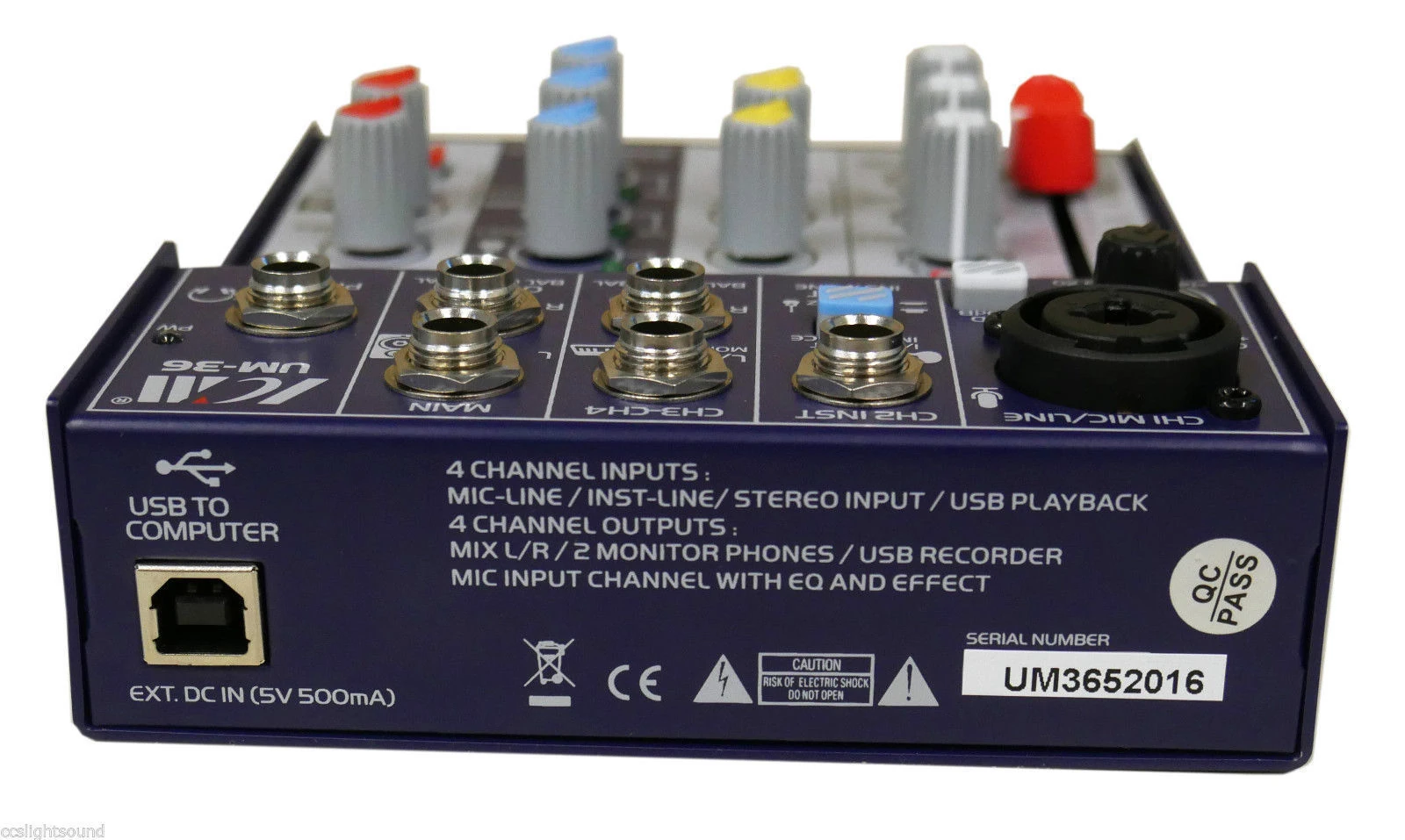

Outputs:
- Balanced/Unbalanced 6.35mm main left and right outputs with mute switch and LED signal and clip indicators
- Stereo 6.35mm jack headphone output and 3.5mm headset phones output
- USB stereo input and stereo output with USB playback control and LED signal indicator
Physical :
- Powered by USB (USB cable supplied)
- LED power indicator
- Dimensions (WxHxD) :120mm x 33mm x 157mm
- Weight : 0.73Kg
