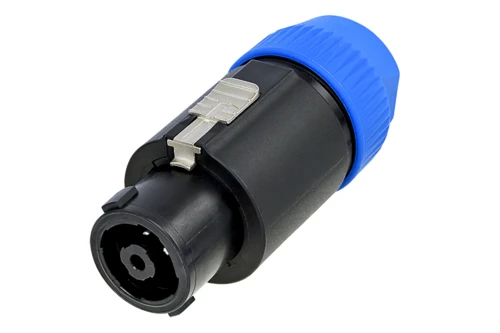

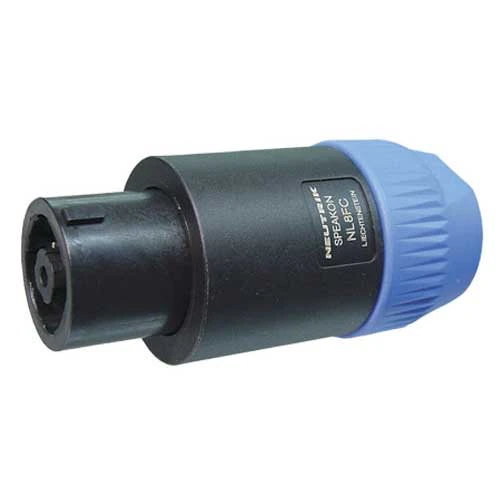

The Neutrik NL8FC is an eight-pole cable connector with latch for secure, soldered terminations of heavy-duty audio cables.
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features:
- Current rating 30 A rms continuous
- Reliable and robust, easy and fast to assemble
- Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)
- Accurate and dependable twist lock latching system "Quick Lock"
- High impact material for insert and housing, long-lasting and dependable
- Chuck type strain relief system for secure clamping of cable
Technical Information:
- Title: NL8FC
- Connection Type: speakON
- Gender: female
- Contact resistance: = 3 mO (after lifetime)
- Dielectric strength: 4 kVdc (peak)
- Insulation resistance: > 1 GO (after dampheat)
- Rated current per contact: 30 A rms continuous
- Rated current per contact: 40 A audiosignal, duty cycle 50 %
- Rated voltage: 250 V ac
- Attention: speakON is NOT to be used as an AC mains or power supply connector!
- Cable O.D.: 8 - 20 mm
- Cable retention: = 220 N (subject to cable O.D. and material)
- Lifetime: > 5000 mating cycles
- Wiresize: 4 mm²
- Wiresize: 12 AWG
- Wiring: screw type terminals or soldering
- Locking device: Quick Lock (latch)
- Contact plating: 4 µm Ag
- Contacts: Brass (CuZn39Pb3)
- Insert: PBTP 20 % GR
- Locking element: Zinc diecast (ZnAl4Cu1)
- Shell: Polyamide (PA 6 30 % GR)
- Strain relief: Polyacetal (POM)
- Flammability: UL 94 HB
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system.
