Light Source: 1 x 250W LED

Beam Angle: 11 (on full open)

2/4/6/8/10 (with beam reducer)

3/6/9/12/15/19 (with zoom lens)

Spot Angle: Fix Gobo: 1015(with zoom lens)

Rotating Gobo: 1017(with zoom lens)

Wash Angle: 15~28

Control

DMX Channel: 17/20 channels

Control Mode: DMX,Master/Slave,Sound Active

Firmware Upgrade: Update via DMX link

Pan/Tilt

Pan/Tilt: 540/ 270

Pan/Tilt Resolution: 16 bit

Construction

Display: LCD display

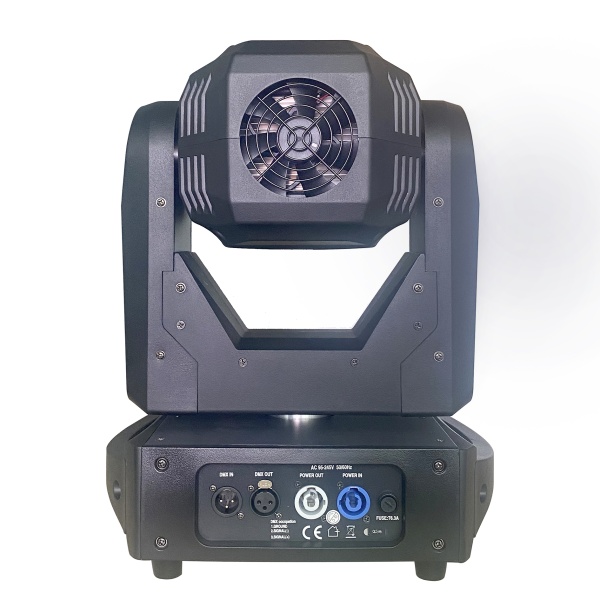

Data In/Out: 3-pin&5-pin XLR

Power in/out: PowerCon

Protection Rating: IP20

Features

Motorized focus

Color Wheel: 8 fixed colors plus white with rainbow effect

Gobo wheel: 1 static gobo wheel with 7 gobos plus open

1 rotating gobo wheel with 6 gobos plus open

Gobos outside diameter: 21mm

Gobos image diameter: 17mm

3 facets prism rotating in both direction

The outstanding color macro effect

0~100% smooth dimming

Independent frost effect

Various strobe speeds

Integrated three features: beam, spot, and wash

SPEC.

Electrical and Physical

Power Voltage: AC 100~240V, 50/60Hz

Power Consumption:  250W

Dimensions: 312x255x453mm

Weight: 12.2Kg
